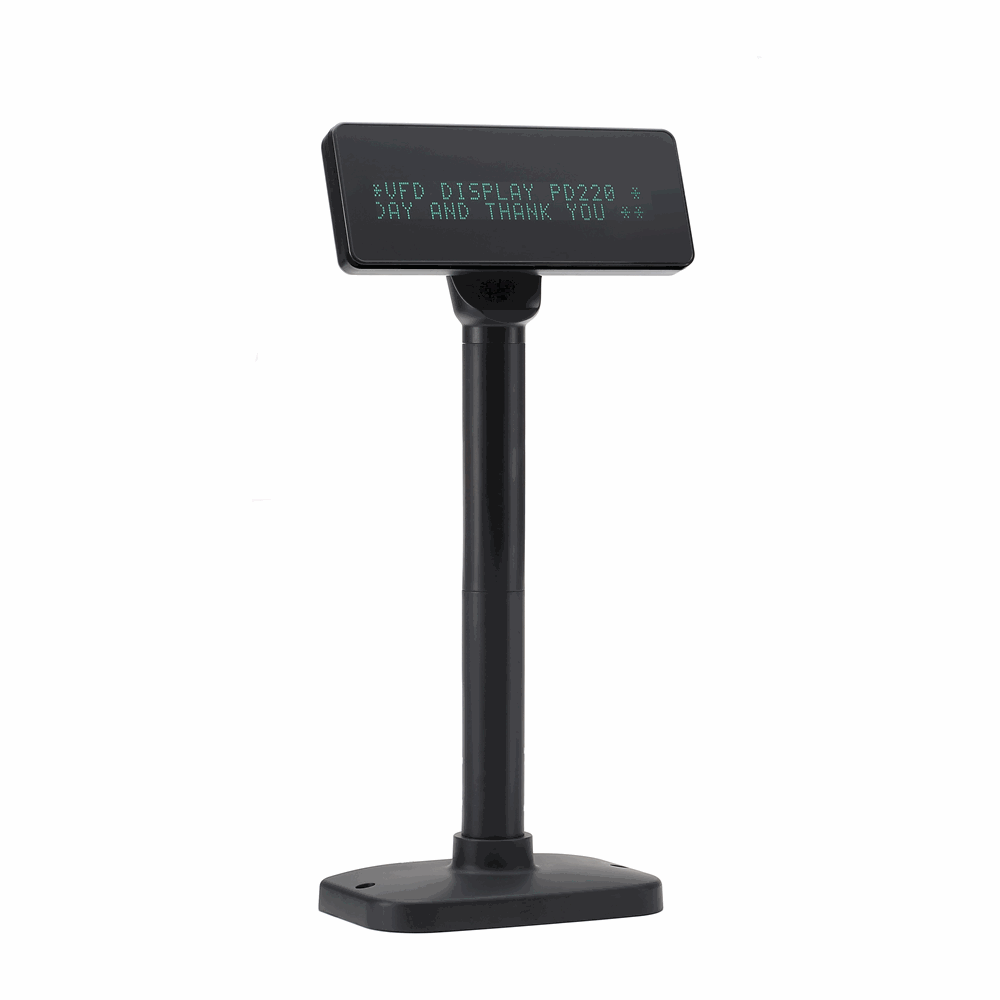

Kundenanzeige 2×20 Zeichen VFD

VP220V2

Eigenschaften
  • Supports 11 command modes included EPSON etc.
  • Power supply from 5V to 24V to prevent any mindless use of improper power input.
  • 20-column x 2-line dot matrix in a wide viewing angle.
  • Easy connectivity to a wide range of POS products.
  • OPOS/JPOS driver is standard.
Technische Details
Display Method Vacuum Fluorescent Display (Blue-green)
Number of characters 40 (2 lines x 20 columns)
Brightness 500 ~ 1000 cd/m2
Character font 5 x 7 dot matrix
Character type 95 Alphanumeric, 32 International Characters
Character size 9.02 (H) x 5.25 (W) mm
Dot Size (X x Y) 0.86 x 1.05 mm
Download characters 9 characters
Panel Dimension 200 (W) x 77.5 (D) x 31 (H) mm

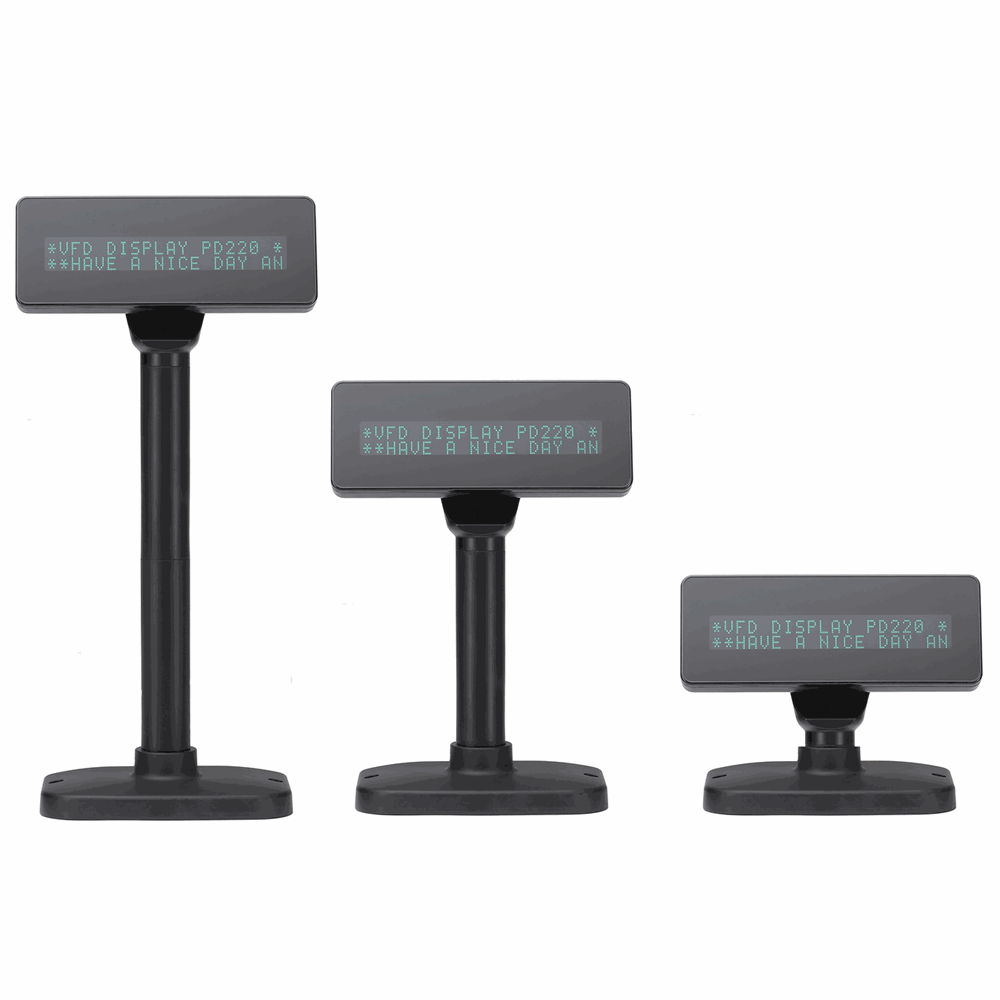

Pole Dimension Per support length: 140 (L) x 34.5 (Dia) mm
Base Dimension 169.5 (W) x 98.5 (D) x 39 (H) mm
Viewing Angle Max. 90°
Horizontal Rotation Max. 355°
Weight Approx. 980 g
Commands Mode LD220,  EPSON  POS  D101,  AEDEX,  UTC/S,  UTC/P,  ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
Language Support France,  Germany,  UK, Denmark-I,  Sweden,  Italy,  Spain,  Japan, Norway, Denmark-II, Slavonic, Russia, Portuguese, Canadian French, Nordic, Turkish, Greek, West European Latin
Interface RS-232 (serial) / USB
Baud rate Direct connection 9600 or 19,200 bps
Reliability MTBF: 30,000 hours
Power DC 5 ~ 24 V
Safety FCC, CE
