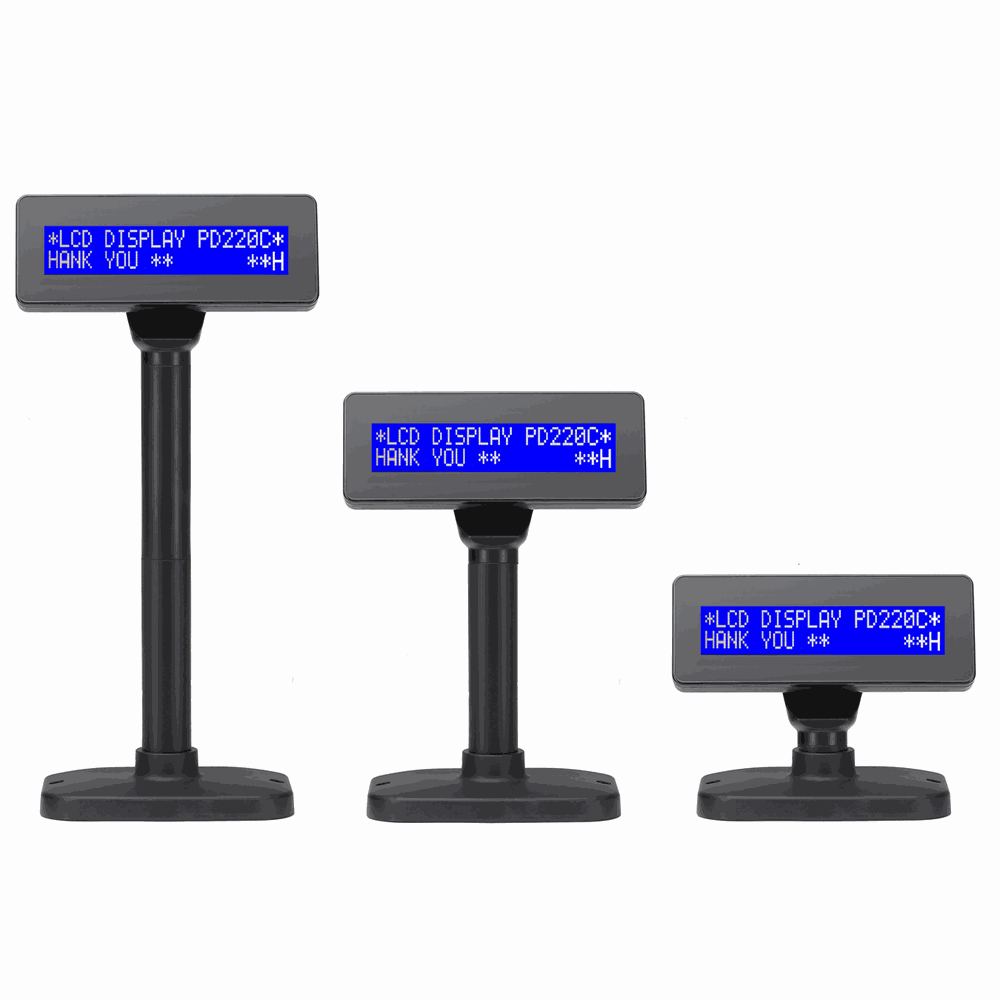

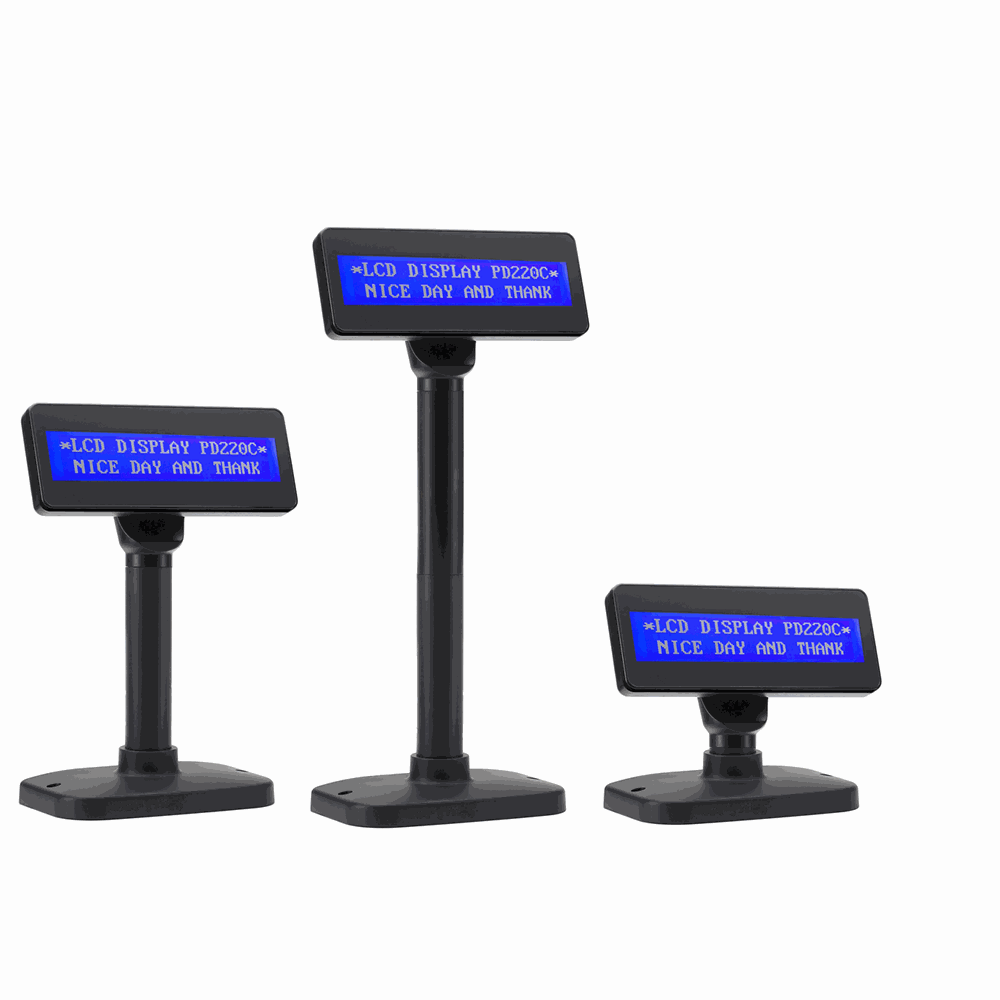

Customer Display


  • Supports 11 command modes included EPSON etc.
  • Power supply from 5V to 24V to prevent any mindless use of improper power input.
  • 20-column x 2-line dot matrix in a wide viewing angle.
  • Easy connectivity to a wide range of POS products.
  • OPOS/JPOS driver is standard.
Technische Details
Display Method LCD (Blue-White)
Number of characters 40(20 columns x 2 lines)
Brightness 300~350 cd/m2
Character font 8 x 16 dot matrix
Character type 95 Alphanumeric, 32 International Characters
Character size 4.92 (W) x11.16 (H)mm
Dot Size (X x Y) 0.66 x 0.85mm
General Download characters 9 characters
Panel Dimension 168(W) x 66.5(D) x 28(H)mm
Pole Dimension Per support length: 140(L) x 34.5(Dia)mm
Base Dimension 169.5(W) x98.5(D) x39(H)mm
Viewing Angle Max. 90°
Horizontal Rotation Max. 355°
Weight Approx. 980 grams
Commands Mode LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
France, Germany, UK, Denmark-I, Sweden, Italy, Spain, Japan,
Language Support Norway, Denmark-II, Slavonic, Russia, Portuguese, Canadian French, Nordic, Turkish, Greek, West European Latin, Simplified Chinese, traditional Chinese
Interface RS-232(serial) / USB
Connection Baud rate Direct connection 9600 or 19,200 bps
Reliability MTBF 30,000 hours
Power Consumption 5~24 VDC
Safety EMC standards Safety standards FCC, CE,ROHS
