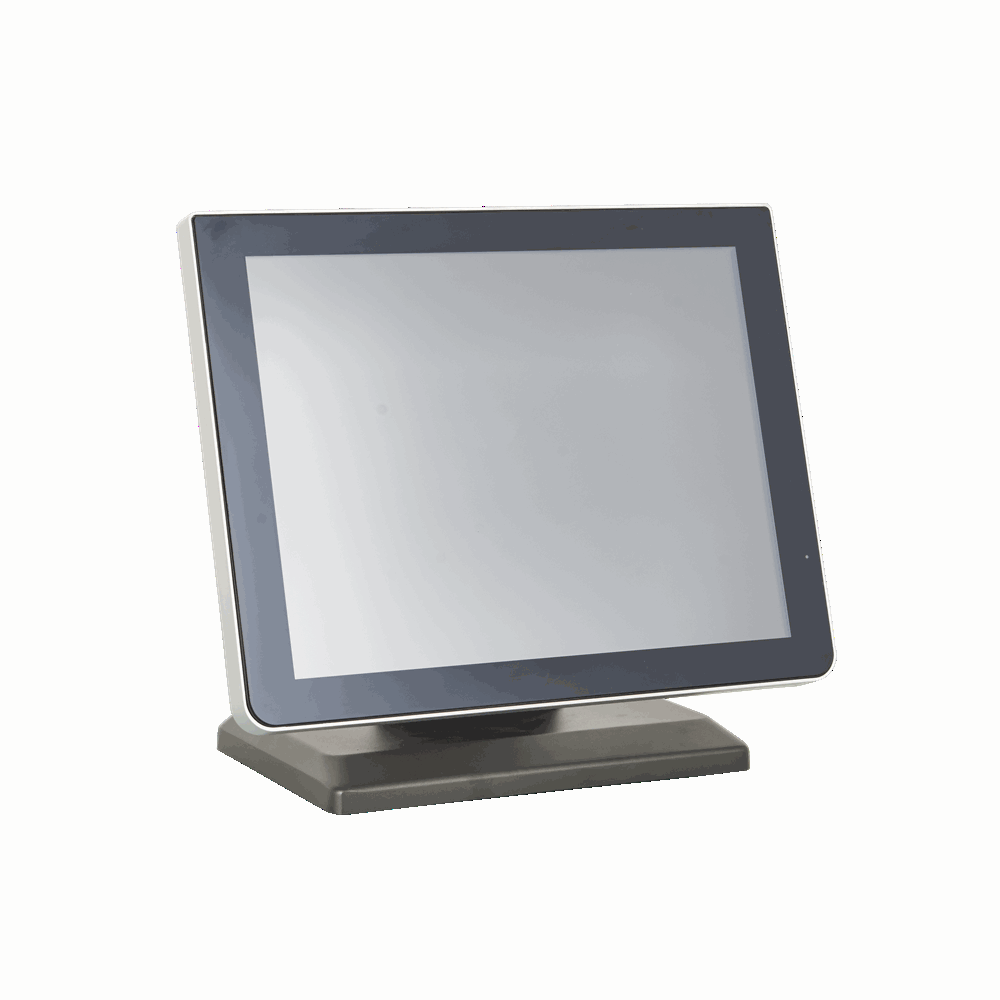

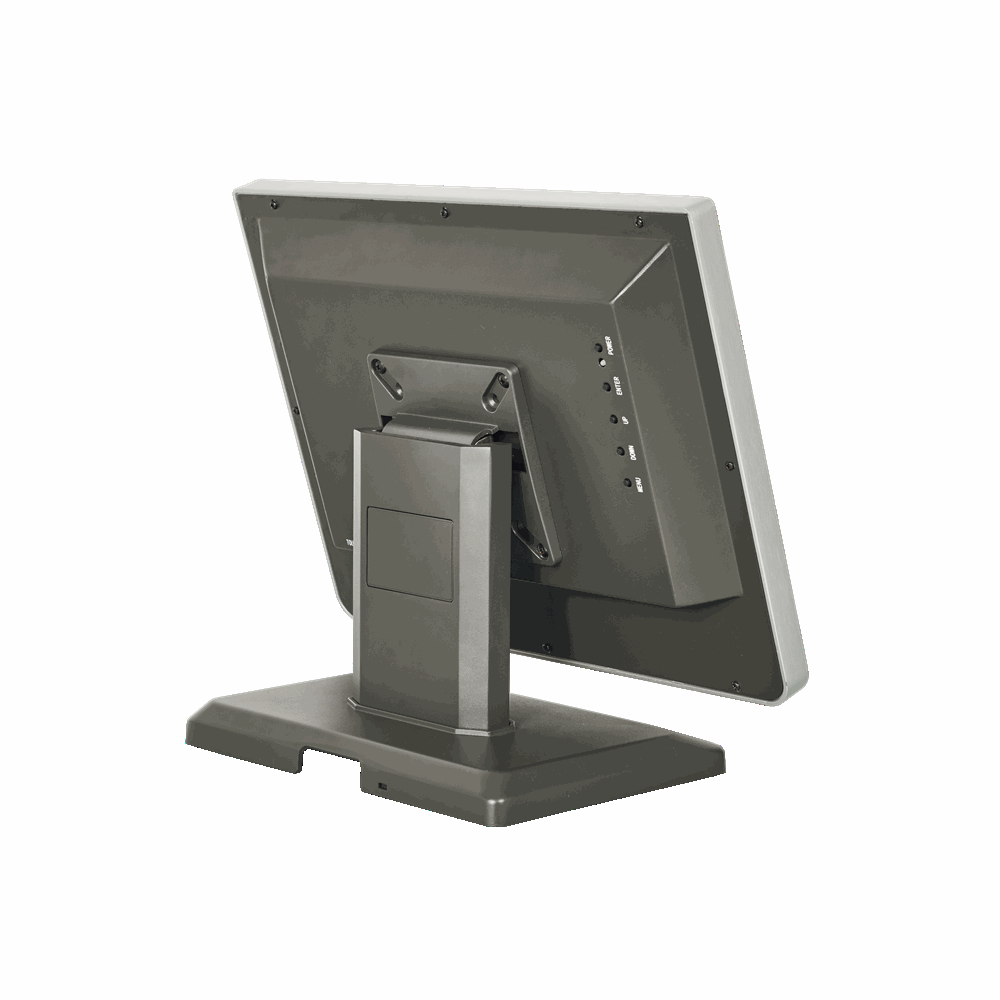

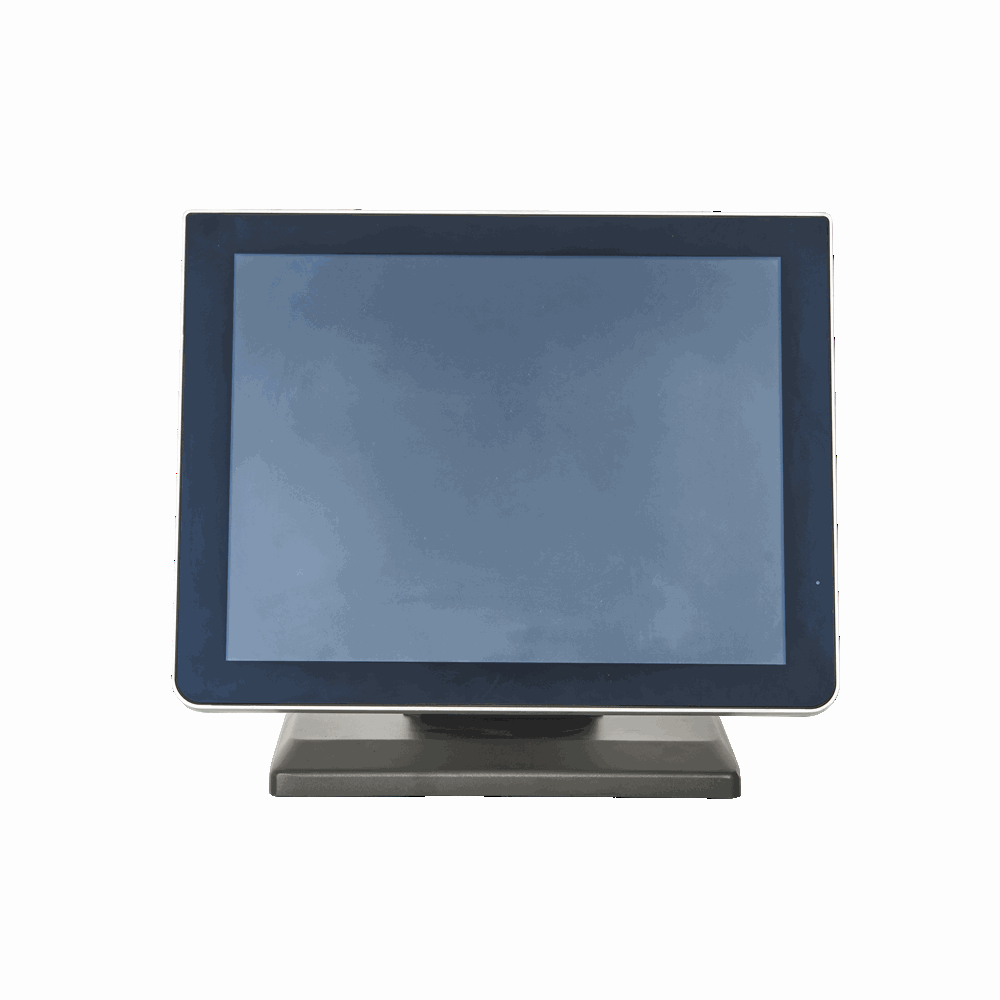

15″ True Flat Industrial LCD Monitor

15″ industrial Monitor

  • Flat designed projected capacitive screens
  • drip-proof enclosure,Touchscreen sealed from the factory to resist against dirt and dust
  • Multiple mounting options including VESA mounting Option
  • On screen display controls on the side rather than the front, plus lockout function for public
  • Built in speakers (optional)
  • Designed for touch“ features such as a stable tilt stand
Technische Details
Model MA150VP
Color Black, optional White
Housing Aluminum
Panel 15″ TFT LED
Resolution 1024×768
Tilt Angle 0 – 90°
Touch Screen
Touch Screen True-flat capacitive
Touch Screen Interface USB-B

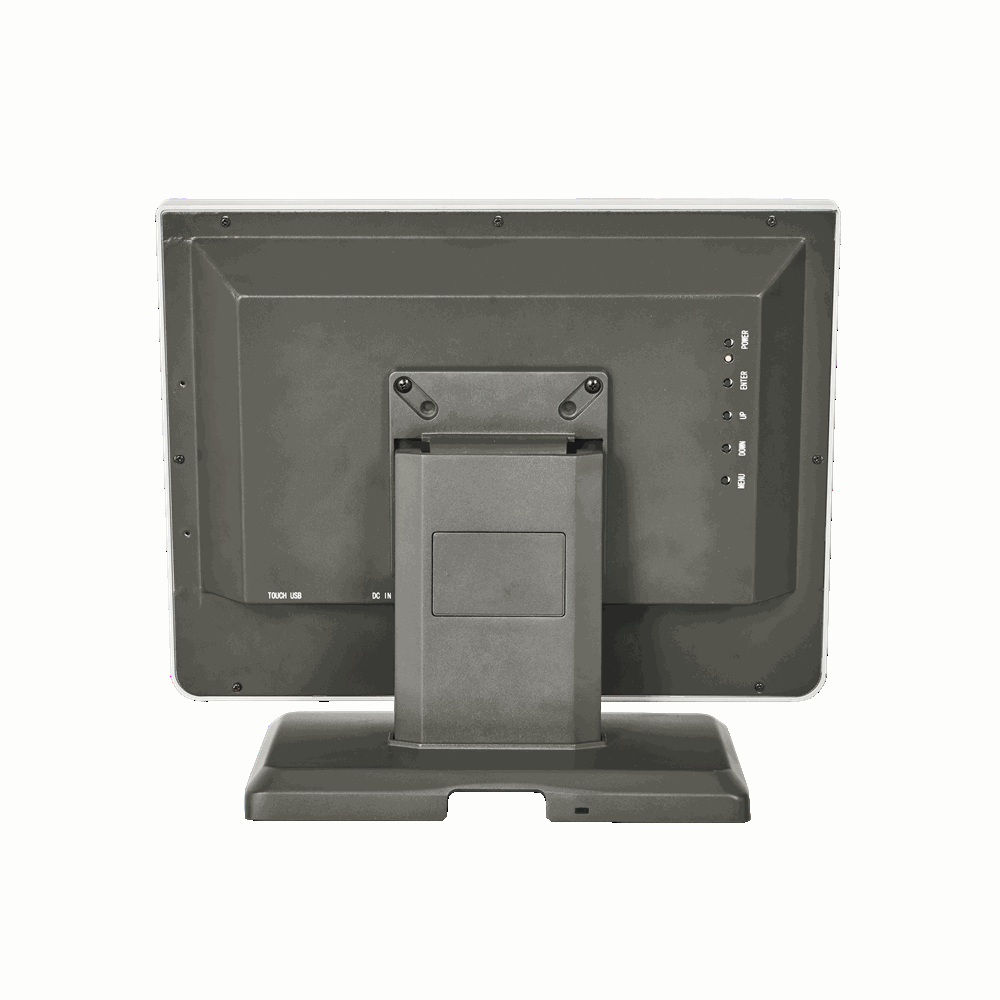

Rear Control Buttons Power, Enter, Up, Down, Menu
I/O PORTS 1 x DB-15 VGA in
1 x USB-B
1 x 12V DC in
Operating / Storage Humidity 20% – 80% / 20% – 80%
Operating / Storage Temperature 0°C – 40°C / -20°C – 60°C
Power Supply 100-250 V / 50-60 HZ AC Power Input
Power Consumption 18W (max.)
Packing Dimensions 460*410*250 mm
Net / Gross Weight 4.5 KG / 6.5 KG
Accessories In Packing 12V/3A Power Adapter
Power Cable ( various plugs )
Driver Disk
VGA Cable
USB-B Cable
Audio Cable ( optional )
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
