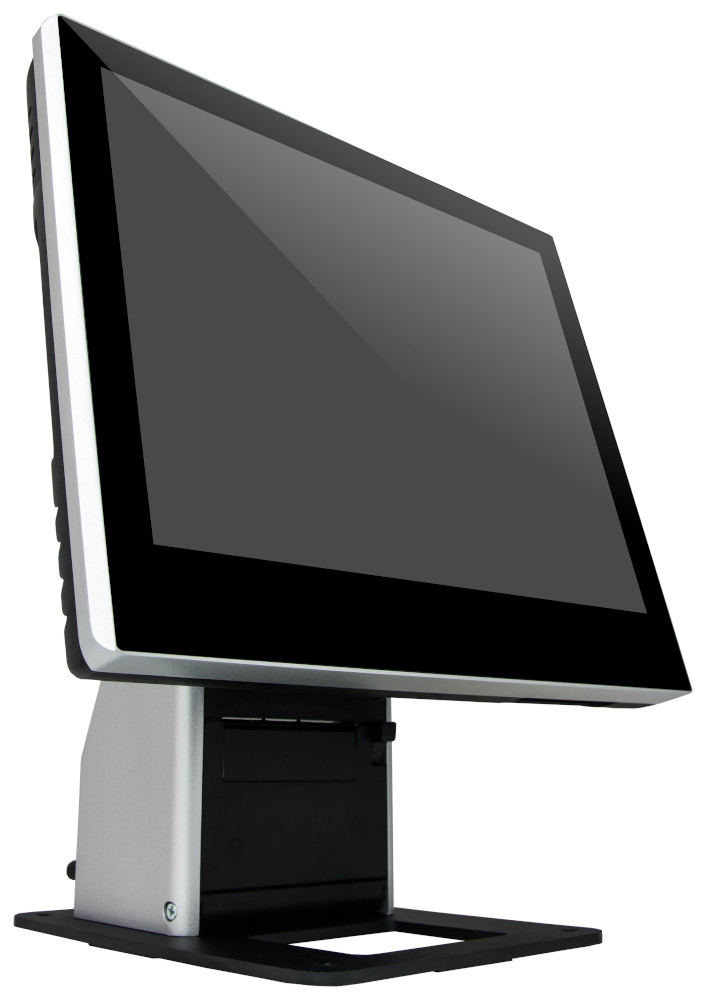

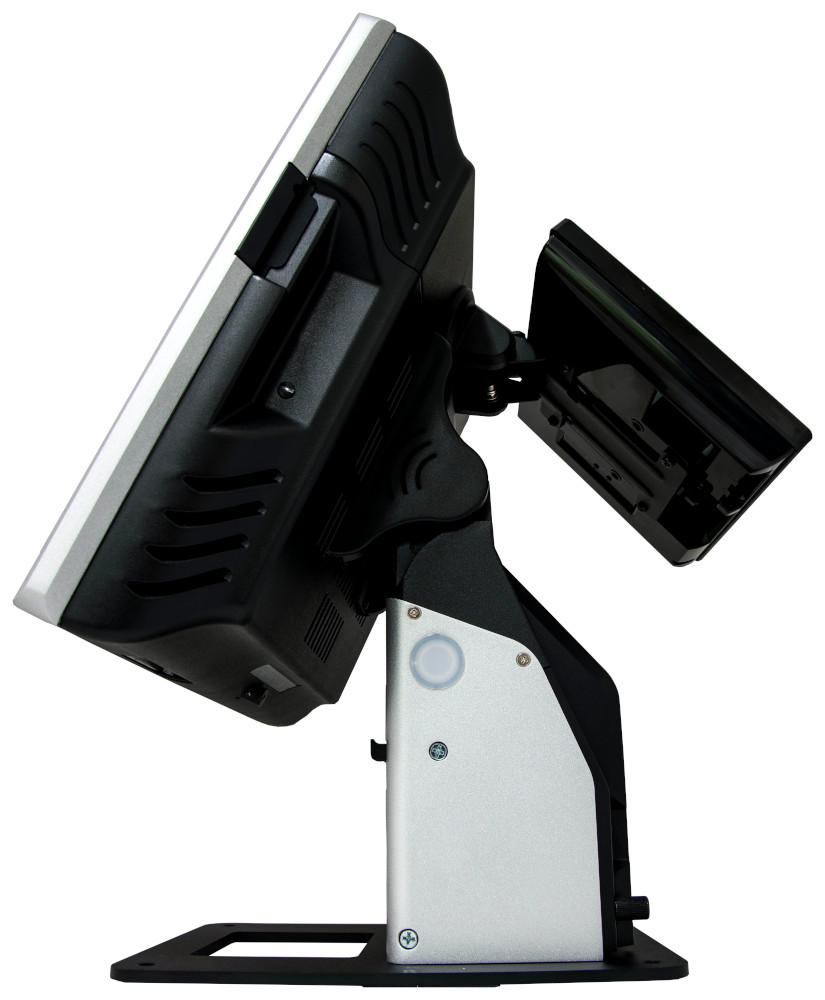

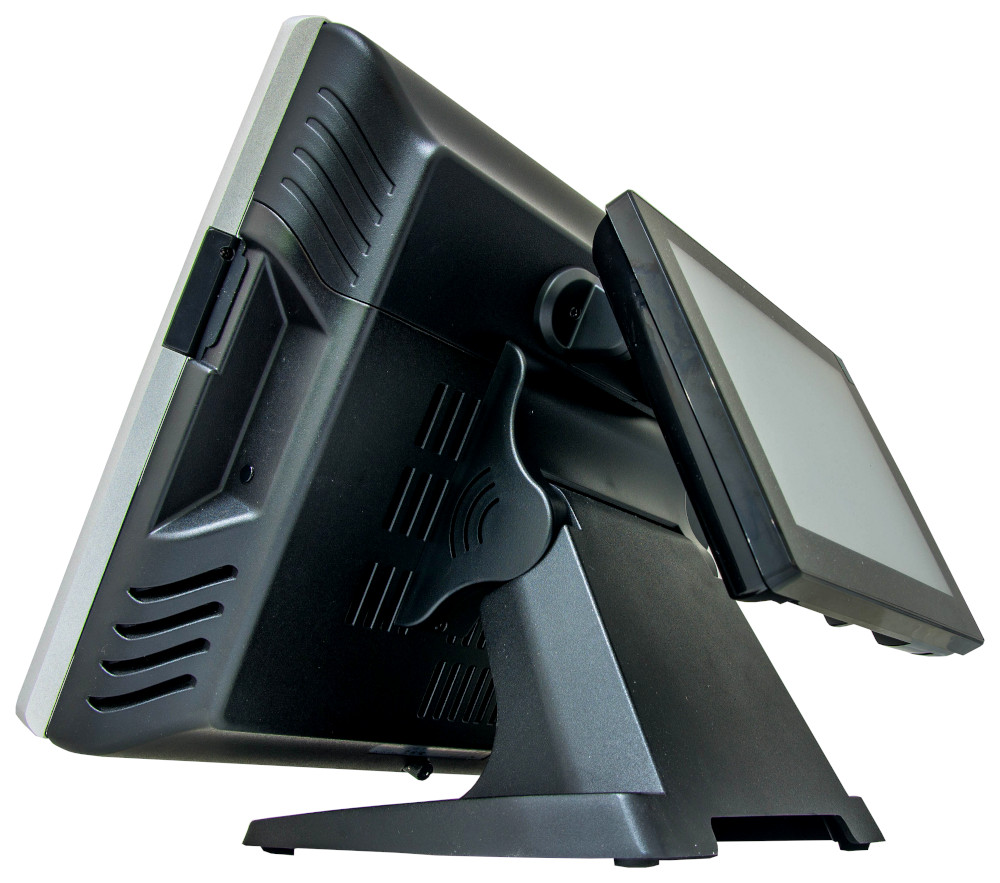

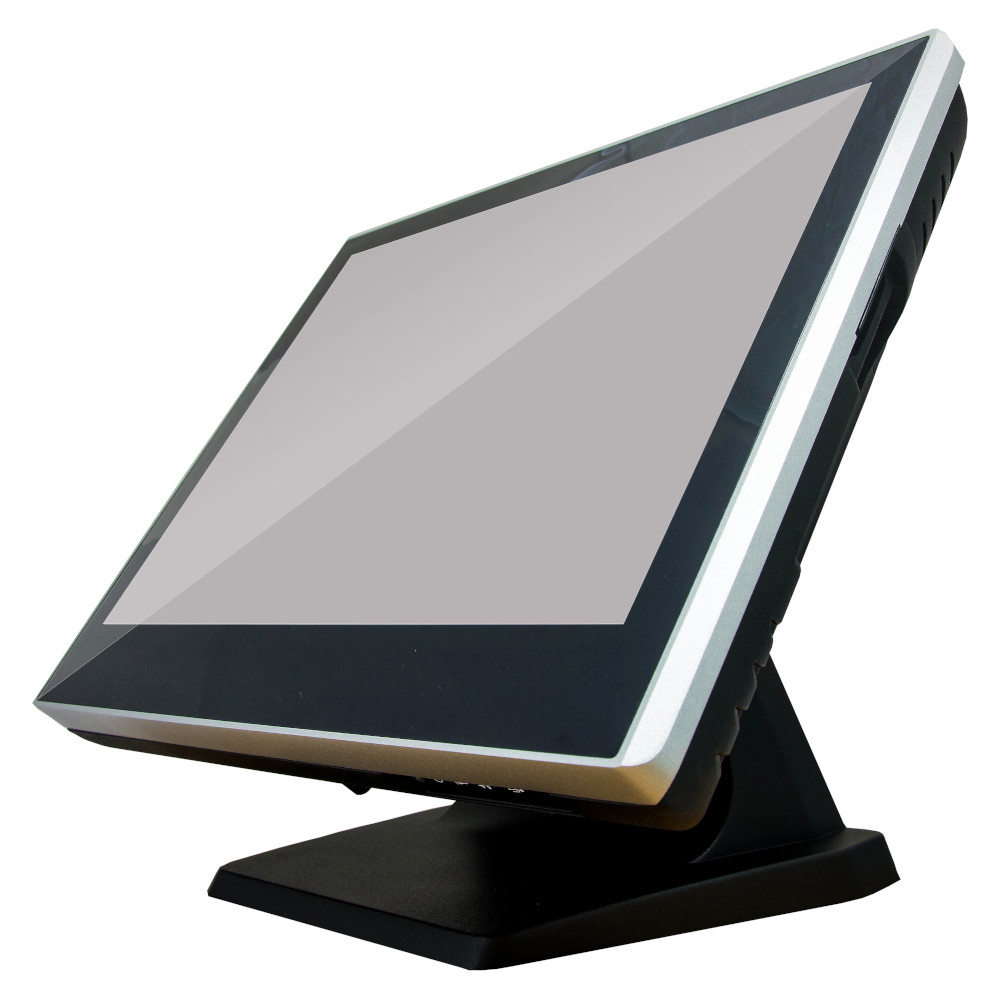

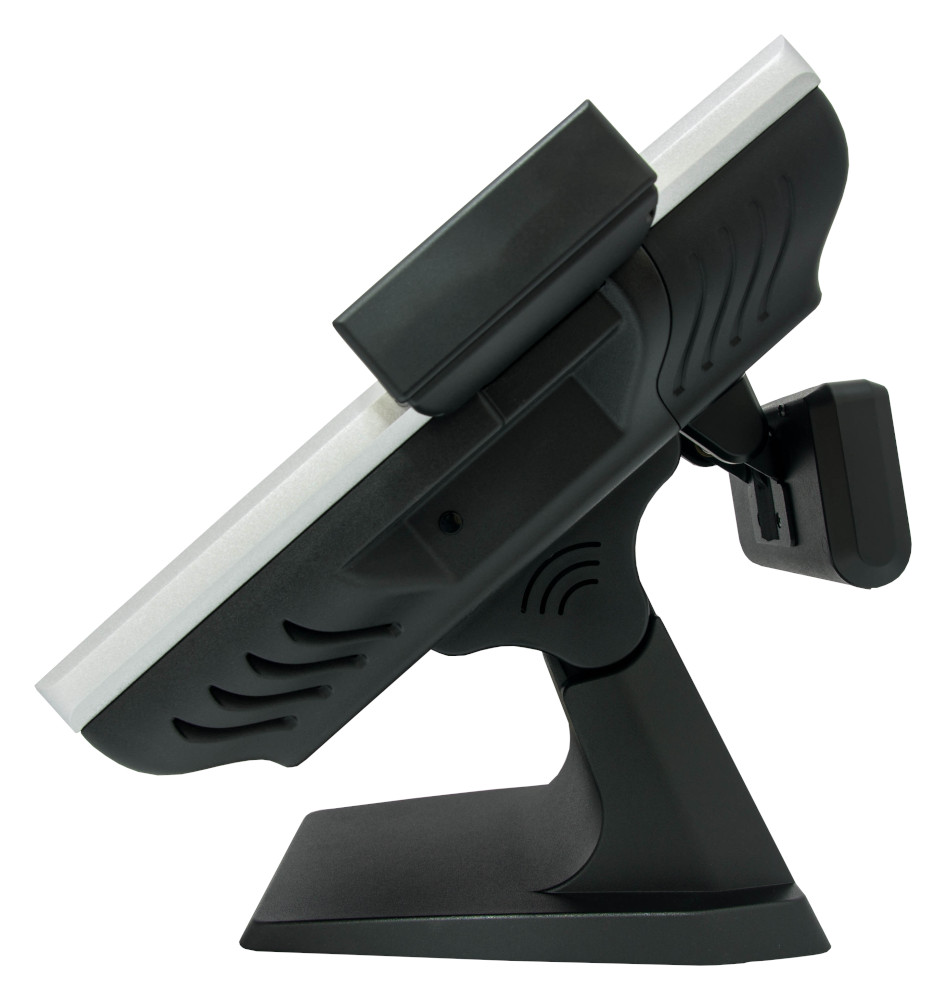

Birch Czar 15″ POS Terminal

15″ All-in-One System

Eigenschaften
  • 15” True Flat PCAP touch screen with stylish & durable Aluminum chassis
  • Modular design (MSR/iButton/VFD/2nd Display)
  • Unique motherboard slide out mechanism
  • Pull-out-with bar HDD device
  • Multiple applications of wall mount, desktop and touch-and-print by the stand changeable
  • Clean outlook and few screws
Technische Details
Model PP8100 PP8300 PP8500
Color Black/Silver
System
CPU Intel Celeron J1900 Intel Core i3 Intel Core i5
Memory 4GB DDRIII , 1 x DDRIII 1333 DIMM, up to 8GB
Storage 64GB 2.5″ SSD
Front Display
Panel 15″ TFT LED
Resolution 1024×768
Touch Screen Projected capacitive touch
Touch Screen Interface USB
I/O PORTS 6x USB 2.0 4x USB2.0 & 2x USB3.0
3x Serial, COM1 with 5V/12V power selectable 4x Serial, with 0V/5V/12V power selectable
1x LAN 2x LAN
Audio 2x Line out / 2x Microphone in Audio 1x Line out / 1x Microphone in
Options MSR, iButton, , VFD , 8″ or 10″ Second Display, Printer stand
Environmental
Operating / Storage Humidity 10% – 80% / 10% – 80%
Operating / Storage Temperature 0°C – 40°C / -20°C – 60°C
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
