Standscanner | Barcodescanner | Scanner

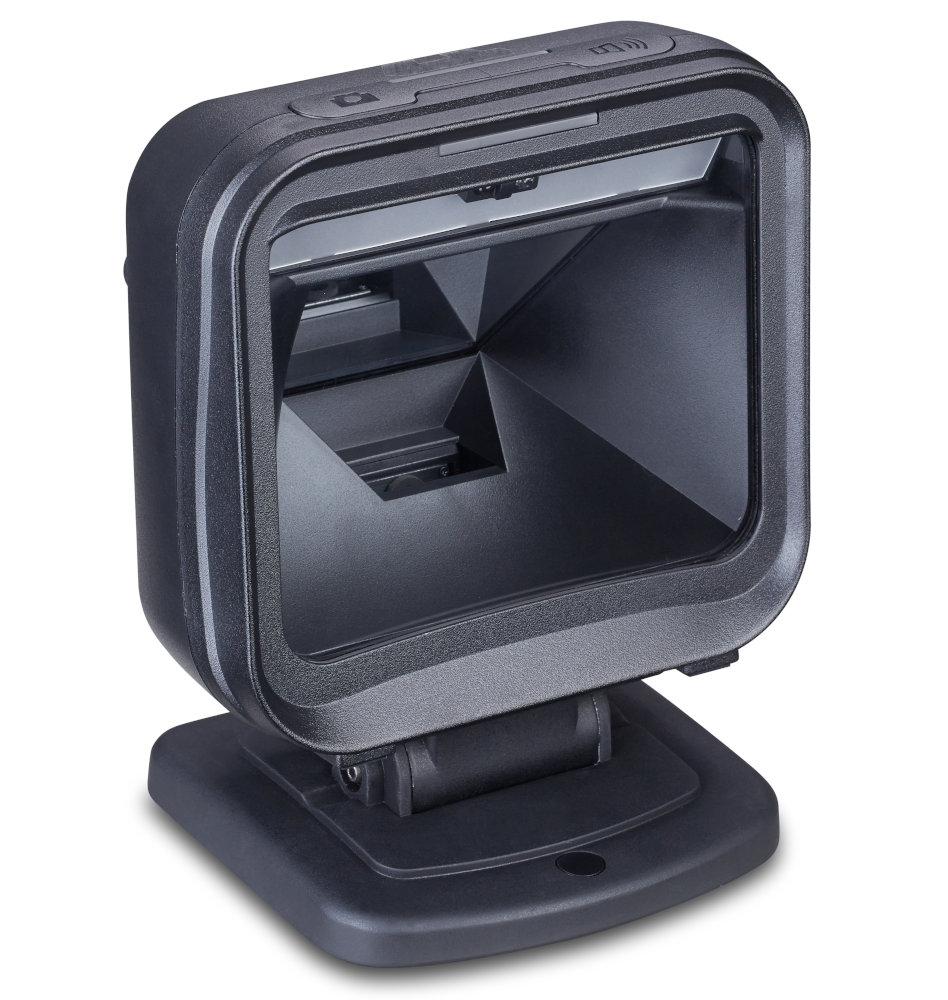

BM8300IM

Eigenschaften

High-performance imaging technology provides support to read 1D and 2D barcodes from both paper labels and mobile devices
Wide field-of-view, omni-directional scanning capability and advanced decoding software facilitate cashiers to scan all barcodes on first pass
Sweep and presentation scanning techniques ensure maximum productivity and throughput
All-solid-state design without laser modules or spinning motors ensures high reliability and durability
Loud speaker and soft blue/green LED offer convenient and comfortable user experience
Multiple interfaces enable the image platform to utilize with different devices

Technische Details

	1D	2D
Image Size	1280 × 1024 pixels
Scanning Angle	±60°, ±54°, 360° (Skew, Pitch, Roll)
Indicator	Beeper, LED
Interface	Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
Decoding Capability	UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants	PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1 Composite
Minimum Resolution	4 mil, 1 mil = 0.0254 mm
Decoding Depth	4 mil Code39 (9 chars): 22 mm – 100 mm 10 mil Code39 (3 chars): 0 mm – 162 mm 13 mil UPC (6 chars): 0 mm – 172 mm 20 mil Code39 (1 char): 0 mm – 220 mm	6.7 mil PDF417 (20chars): 17 mm – 125 mm 10 mil QR (20 chars): 17 mm – 125 mm 10 mil DM (20 chars): 14 mm – 130 mm 20 mil QR (20chars): 0 mm – 195 mm
Input Voltage	DC 5 ± 0.25 V
Power	5.00 W (working), 0.40 W (standby)
Current	1000 mA (working), 80 mA (standby)
Dimensions (H × W × D)	152 mm × 81 mm × 144 mm (without stand) 152 mm × 112 mm × 184 mm (with stand)
Weight	563 g (without stand, without cable), 832 g (with stand, without cable)
Temperature	Operating: 0° to 50°C; Storage: -40° to 70°C
Humidity	5% to 95% (non-condensing)
