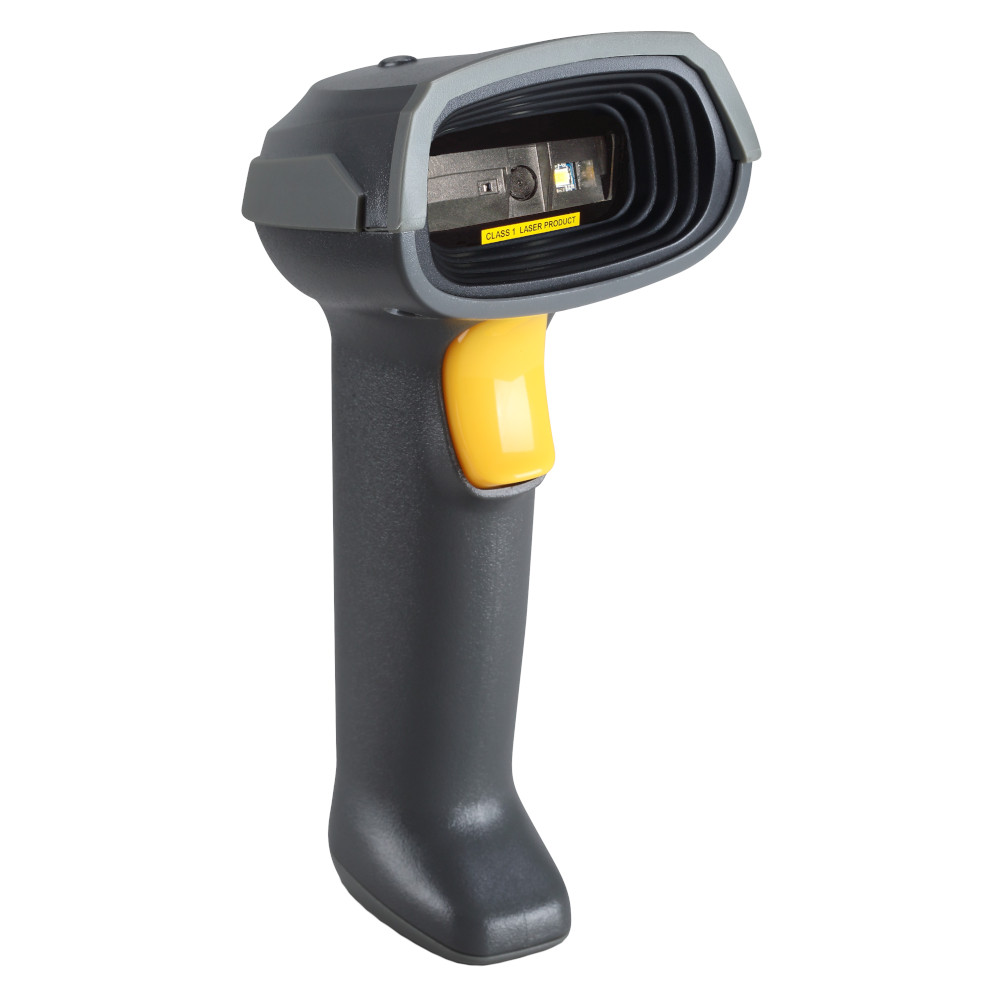

1D/2D Handscanner mit Imager-Technologie

BM6100IM

Eigenschaften

Read all major 1D & 2D symbols, as well as those on electronic screens.
Image auto-detection, supports both handheld and presentation scanning modes.
Ergonomic, snappy and stylish design allows for a natural and comfortable grip.
Protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs.
Omnidirectional scanning.
Suitable to operate in diverse working environments.
Ready for all POS systems.
Easy firmware upgrade.

Technische Details

	1D	2D
Image Size	640 × 480 pixels
Imager Field of View	Horizontal: 40°, Vertical: 30°
Scanning Angle	±60°, ±40°, 360° (Skew, Pitch, Roll)
Indicator	Beeper, LED
Interface	RS-232, USB Keyboard, USB virtual COM
Decoding Capability	UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants	PDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQR Code
Minimum Resolution	5 mil, 1 mil = 0.0254 mm
Decoding Depth	5 mil Code39 (3 chars): 1.5 cm – 5.5 cm 13 mil UPC (6 chars): 0.5 cm – 13.0 cm 20 mil Code39 (5 chars): 4.0 cm – 18.0 cm	6.7 mil PDF417 (20 chars): 1.0 cm – 8.2 cm 10 mil DM (20 chars): 1.0 cm – 8.0 cm 20 mil QR (20 chars): 1.5 cm – 16.5 cm
Input Voltage	DC 5 ± 0.25 V
Power	1.20 W (working), 0.40 W (standby)
Current	240 mA (working), 80 mA (standby)
Dimensions (H × W × D)	178 mm × 69 mm × 82 mm
Weight	146 g (without cable)
Temperature	Operating: -10° to 50°C; Storage: -20° to 60°C
Humidity	5% to 95% (non-condensing)
