Bon Drucker kosteneffektiv

PXQ80010

Eigenschaften

PXQ80010 is a cost effective Thermal Receipt Printer:

Technische Details

Printing method	Direct thermal
Printing speed	300 mm/s
Paper width	79.5 ± 0.5 mm
Printable area	72 mm (adjustable by commands)
Maximum paper diameter	Φ 80 mm
Paper thickness	0.06 – 0.08 mm
Column capacity	512 dots / line
Line space	3.75 mm (changeable by commands)
Commands	Compatible with ESC/POS

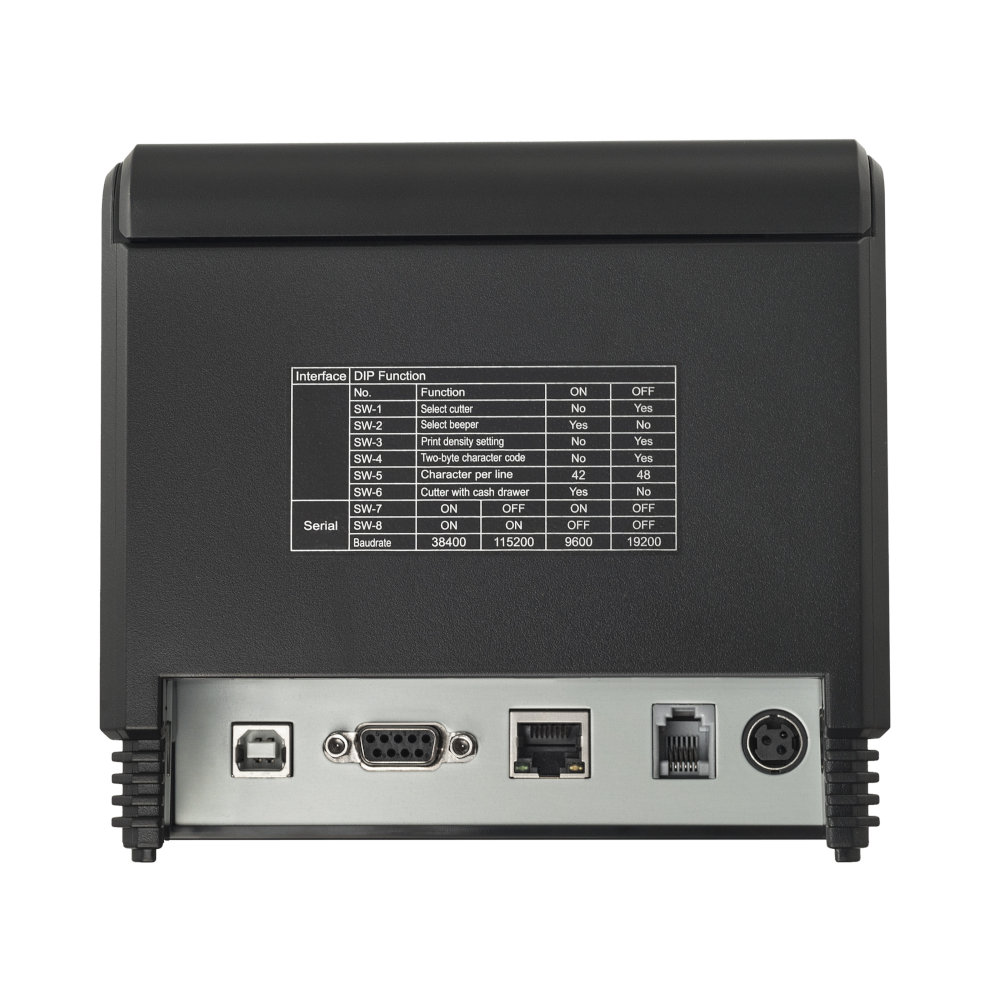

Interface type	USB + Serial + LAN
Character size	ANK, Font A: 12×24 dots; Font B: 9×17 dots; simplified/traditional Chinese: 24×24 dots
Dimension	192×140×142.5 mm (D×W×H)
Gross weight	1.1 kg
Bar code	UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2-dimension code	QR CODE / PDF417
Code page	PC347 (Standard Europe), Katakana, PC850 (Multilingual) , PC860 (Portuguese), PC863(Canadian-French), PC865 (Nordic), WestEuropeGreek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), Pc858, IranII, Latvian, Arabic, PT151 (1251)
Cutter	Partial
Cutter life	1.5 million cuts
Print head life	100 km
Input buffer	2048 Kbytes
NV Flash	256 Kbytes
Power adaptor	AC 110V/220V, 50~60 Hz
Input voltage	DC 24V/2.5A
Cash drawer output	DC 24V/1A
Work environment	Temperature: 0~45 °C; humidity: 10~80 RH%
Storage environment	Temperature: -10~60 °C; humidity: 10~90 RH%
Operating system	Win XP / Win Vista / Win 7 / Win 8 / Win 8.1 / Win10 / Linux
