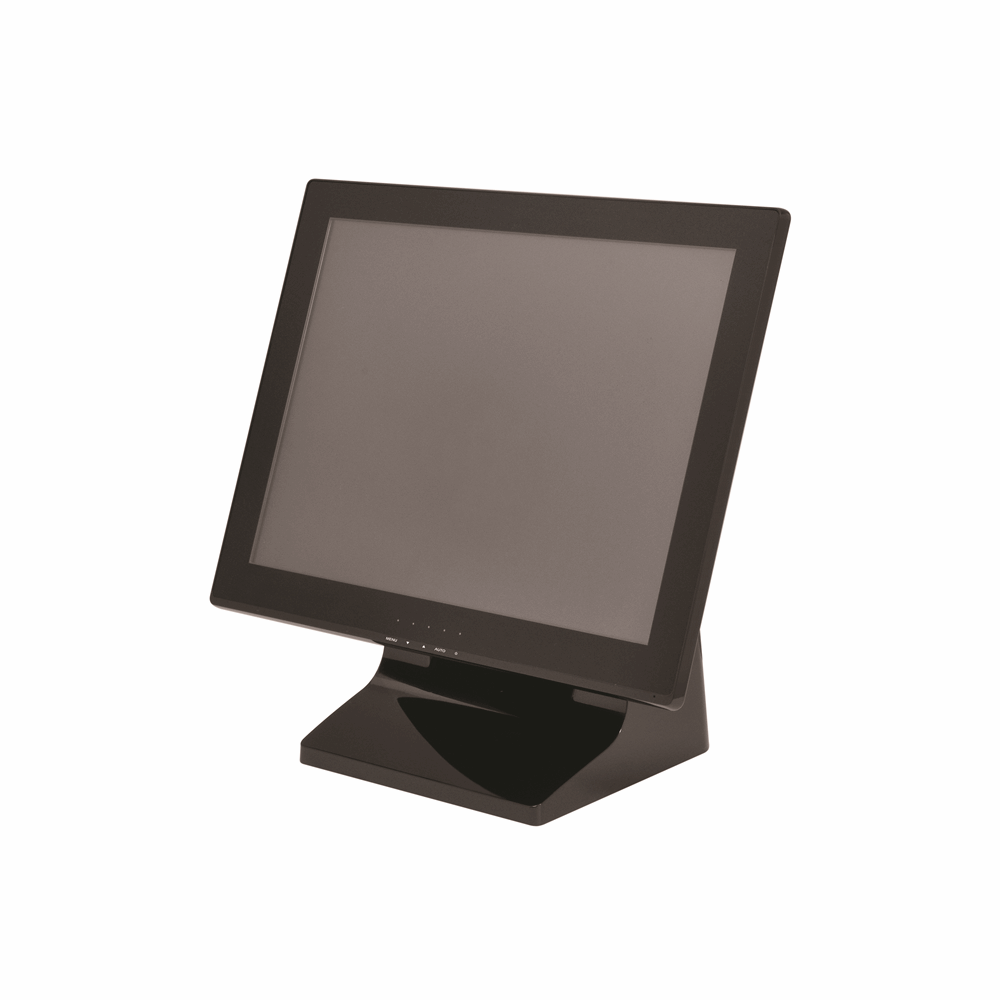

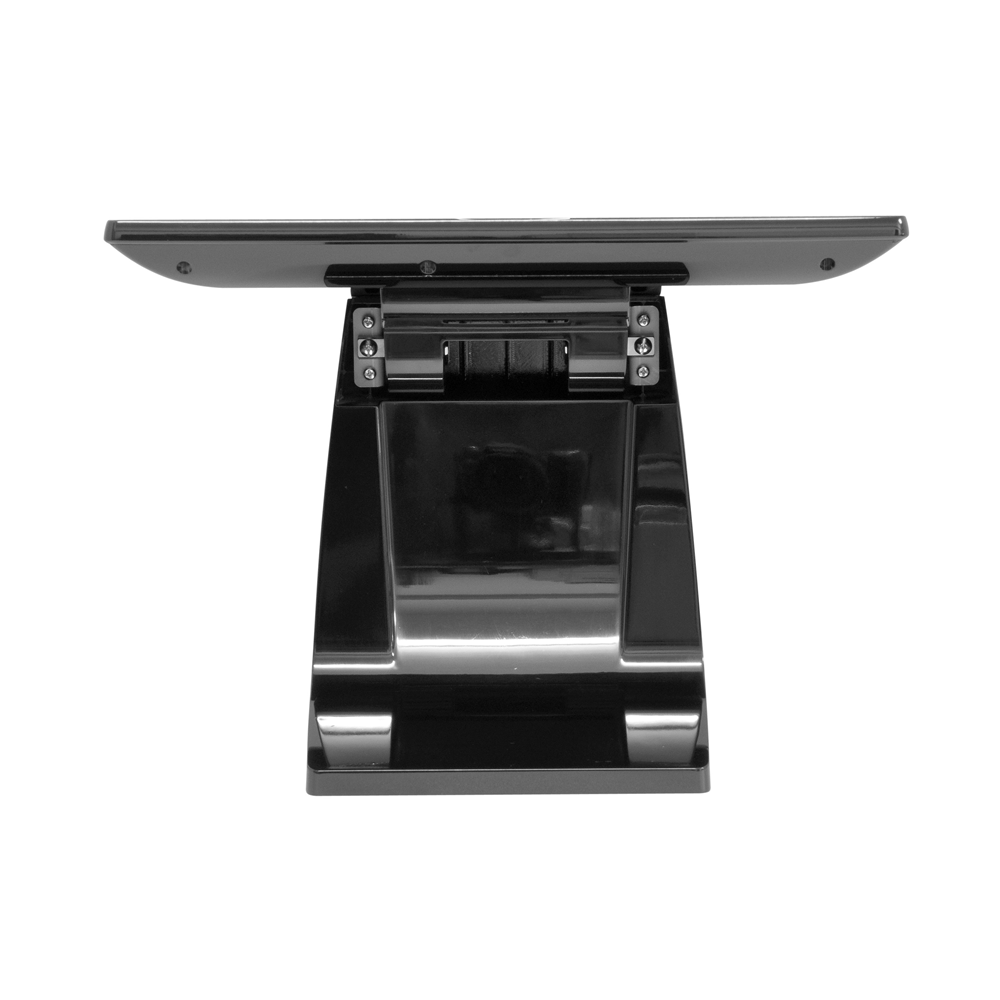

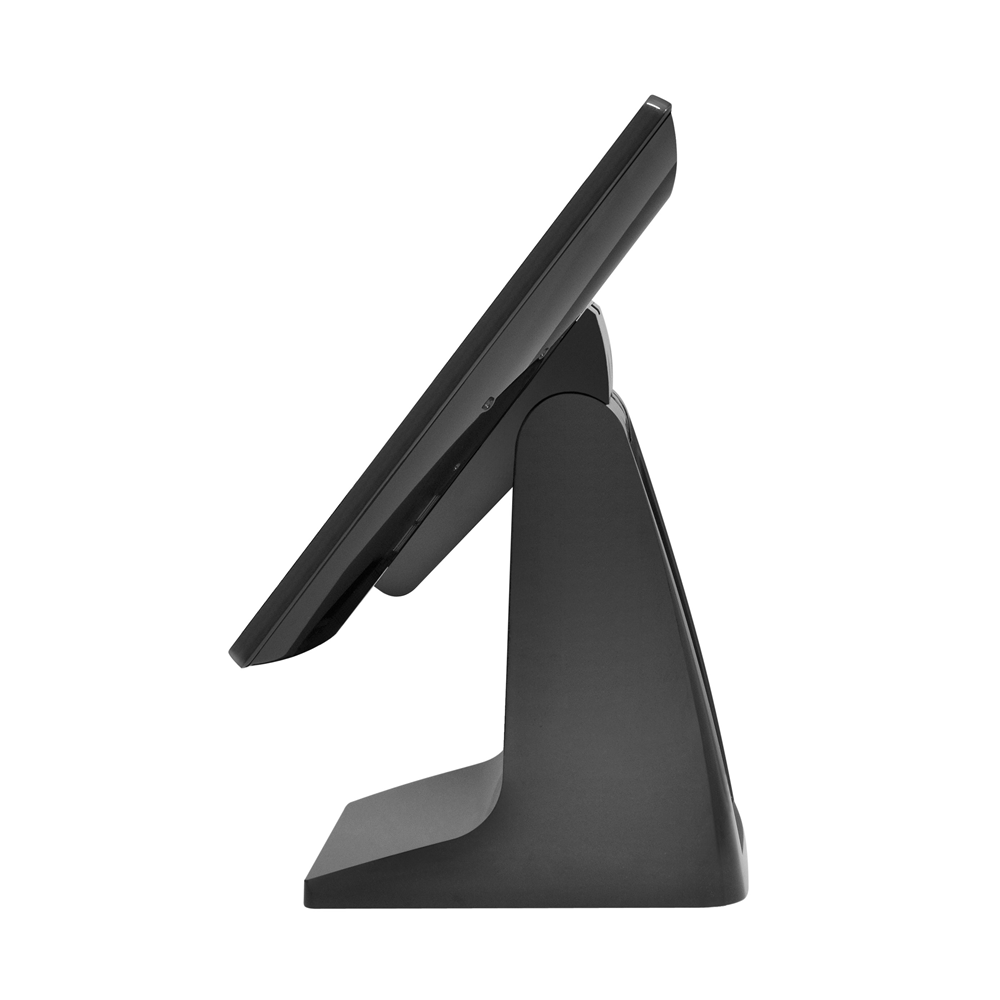

15″ Rimless USB LCD Monitor

MF150VG / MF150VR / MF150VP

  • Rimless front bezel design, Spill & dust proof, Plastic rear cover
  • Low power consumption only 10Wwith LED backlight
  • Wall Mount power adapter
  • VESA 75x75mm wall mounting standard
  • User friendly OSD Control buttons
  • Integrated with protection glass (Model: MF150VG)
    or 5 wires resistive flat touch (Model: MF150VR)
    or Projected capactive touch (Model: MF150VP)
  • Smart cable management
  • Small footprint
Technische Details
Model MF150VG / MF150VR / MF150VP
Cabinet Color Black or White
Cover Lens Mitsubishi PMMA Hardness > 5H (JIS D0202), T>93%(MF150VG)/5 wires resistive flat touch (MF150VR)/ PCAP touch (MF150VUP)
Display Type 15″ diagonal TFT active matrix with LED backlight
Recommended Resolution 1024 x 768
Brightness 300 cd/m²(typ.)
Contrast Ratio 800:1 (typ.)
Viewing Angle 160° (H) / 160° (V)
I/O Connectivity D-Sub 15pin VGA. DC12V (MF150VG)
D-Sub 15pin VGA. DC12V Mini USB(MF150VR/MF150VP)
Backlight MTBF 30,000 hrs
Technische Dokumente

Hier bekommen Sie technische Unterlagen zum Download:
