| Communication Characteristics |
| Working Range |
100 meters (open air) |
| Ratio Link |
430.0 – 431.9 MHz, 433.3 – 434.7 MHz with adaptive frequency hopping |
| Mechanical Characteristics |
| Dimensions (L x W x D) |

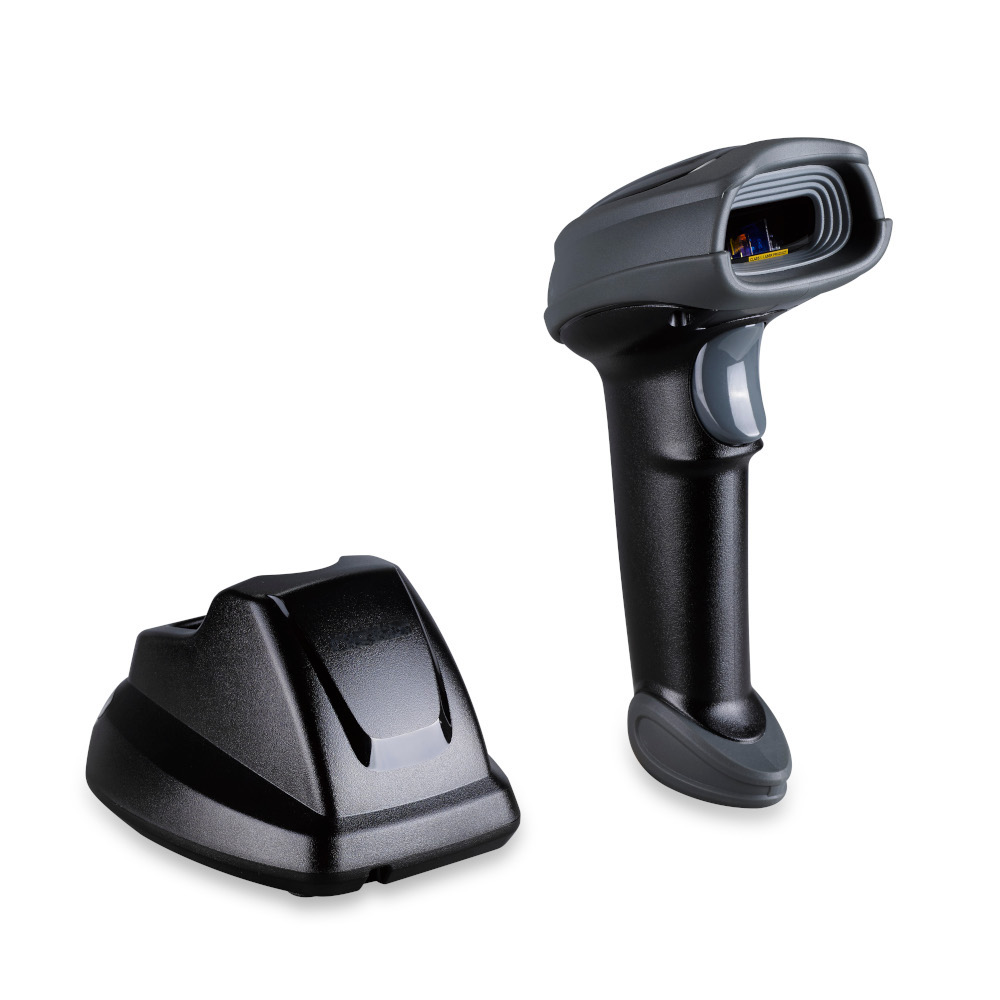

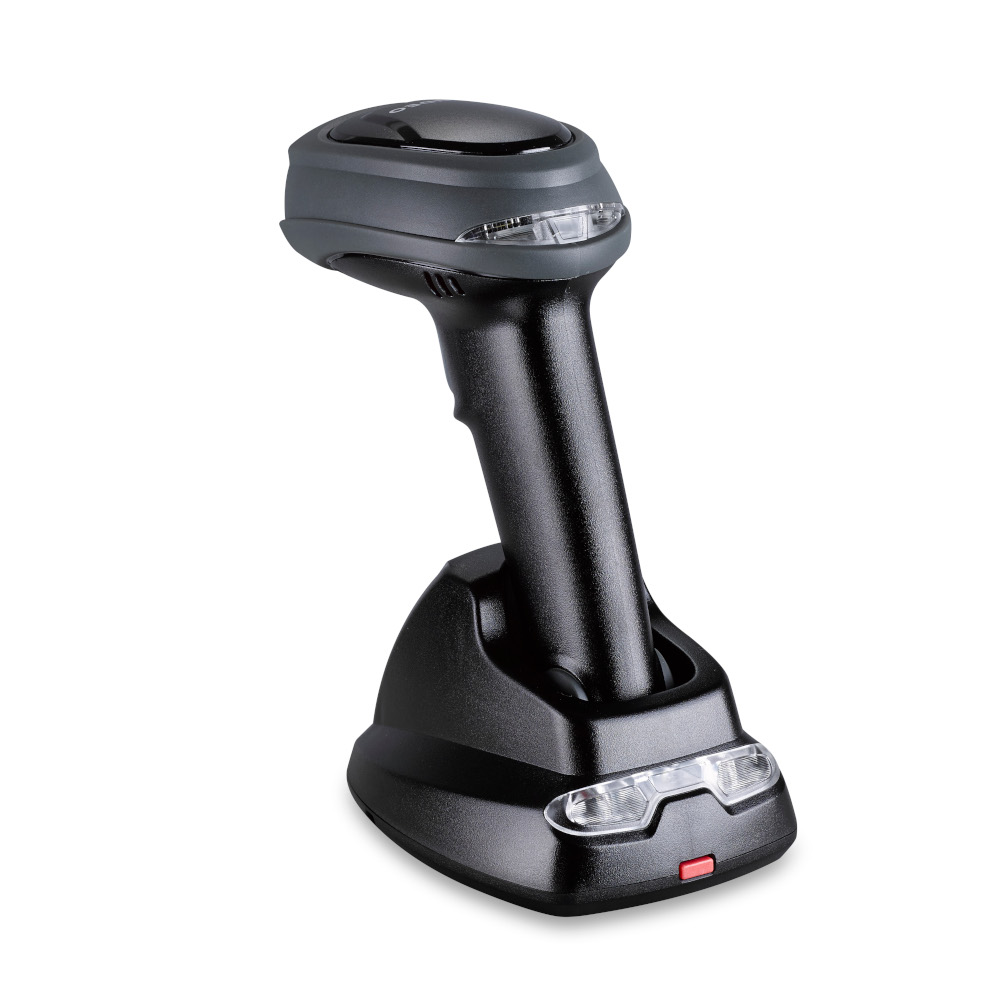

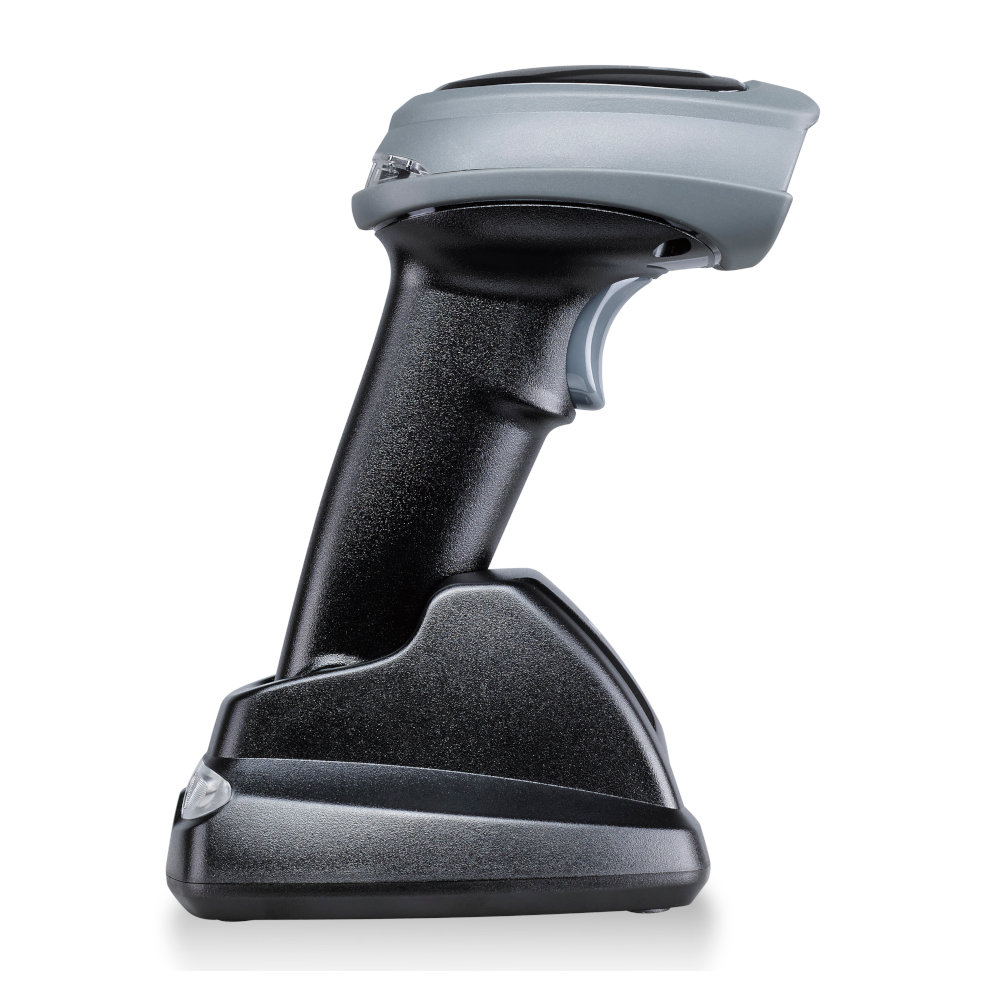

Handheld unit: 90.2 x 70 x 180 mm; Cradle: 118 x 89.5 x 74 mm |
| Weight |
Handheld unit: 210 g; Cradle: 140 g (without cable) |
| Indicator |
Handheld unit: LED, beeper, vibration; Cradle: LED |
| Interface |
USB Keyboard, USB Virtual COM, RS232, PS/2 Keyboard |
| Electrical Characteristics |
| Input Voltage |
DC 5 ± 0.25 V |
| Current |
Handhel unit: 20 mA (standby), 350 mA (working)
Cradle: 60 mA (working), 500 mA (charging, max.) |
| Battery |
1400 mAh Lithium-ion battery |
| Charge time |
4 hours |
| Standby time |
4.5 days |
| Operating Time |
46 hours (1 scan per 5 seconds) |
| Performance Characteristics |
| Image Size |
1280 x 800 pixels |
| Field of View |
Horizontal: 42°, vertical: 26.5° |
| Scanning Angle |
± 70°, ± 75°, 360° (Skew, Pitch, Roll) |
| Print Contrast |
20% minimum reflectance difference |
| Decoding Capability |
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants
2D: PDF417, MicroPDF417, QR code, DataMatrix, Han Xin code, Aztec Code |
| Minimum Resolution |
HD: 1D (Code 39): 3 mil, 2D (QR): 5 mil
SR: 1D (Code 39): 4 mil, 2D (PDF417): 6.7 mil |
| Environmental Characteristics |
| Temperature |
Operating: 0° to 50°C; Storage: -40° to 60°C |
| Humidity |
5% to 95% (non-condensing) |
| Safety |
EMC: EN55022, EN55024; Electrical Safety: EN60950-1; Photobiological Safety: EN62471:2008, Illumination: 0~100,000 LUX; Protection Class: IP51; Drop Resistance: With stands multiple 1.5 m drops to concrete |
